參數(shù)規(guī)格

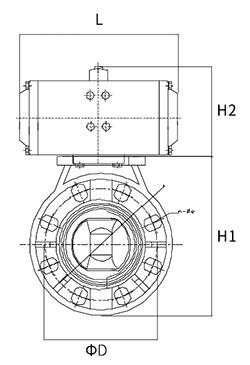

| 規(guī)格 | 外形尺寸 | ||||
|---|---|---|---|---|---|
| H1 | H2 | L(mm) | ΦD | n-Φd1 | |
| 2" | 200.0 | 130.0 | 210.0 | 122.8 | 4-Φ21.3 |
| 2-1/2" | 220.0 | 130.0 | 210.0 | 142.5 | 4-Φ21.5 |
| 3" | 240.0 | 130.0 | 210.0 | 156.3 | 8-Φ22.8 |
| 5" | 270.0 | 150.0 | 210.0 | 185.3 | 8-Φ24.3 |
| 4" | 300.0 | 150.0 | 210.0 | 213.0 | 8-Φ25.0 |
| 6" | 320.0 | 150.0 | 210.0 | 240.8 | 8-Φ22.8 |
| 8" | 380.0 | 170.0 | 300.0 | 296.5 | 8-Φ23.5 |
| 10" | 450.0 | 170.0 | 300.0 | 362.0 | 12-Φ31.4 |
| 12" | 550.0 | 170.0 | 300.0 | 432.0 | 12-Φ27.0 |
