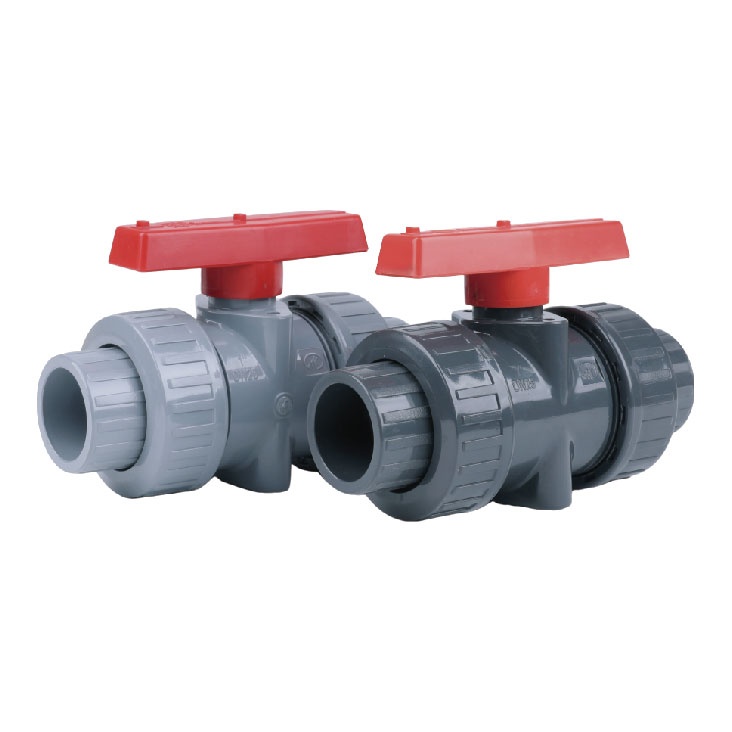

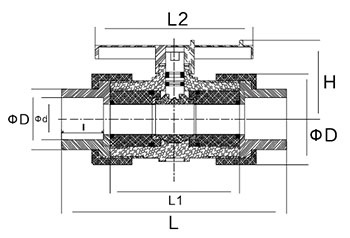

參數(shù)規(guī)格
| 規(guī)格 | 外形尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| Φd | ΦD | ΦD1 | l(mm) | L1(mm) | L2(mm) | L(mm) | H | |
| 1/2" | 21.5 | 30.0 | 47.0 | 22.2 | 60.0 | 78.0 | 114.0 | 48.0 |
| 3/4" | 26.9 | 35.0 | 56.0 | 25.4 | 73.0 | 92.0 | 134.0 | 57.0 |
| 1" | 33.7 | 44.0 | 67.0 | 28.6 | 78.0 | 100.0 | 145.0 | 66.0 |
| 1-1/4" | 42.4 | 54.0 | 82.0 | 31.8 | 87.0 | 110.0 | 163.0 | 76.0 |
| 1-1/2" | 48.6 | 60.3 | 98.0 | 34.9 | 92.0 | 121.0 | 172.0 | 88.0 |
| 2" | 60.6 | 73.3 | 120.0 | 38.1 | 112.0 | 147.0 | 201.0 | 108.0 |
| 2-1/2" | 73.4 | 89.2 | 140.0 | 44.5 | 137.0 | 180.0 | 242.0 | 116.0 |
| 3" | 89.3 | 105.5 | 180.0 | 47.6 | 180.0 | 190.0 | 292.0 | 128.0 |
| 4" | 114.8 | 133.0 | 175.0 | 57.2 | 202.0 | 239.0 | 334.0 | 162.0 |
