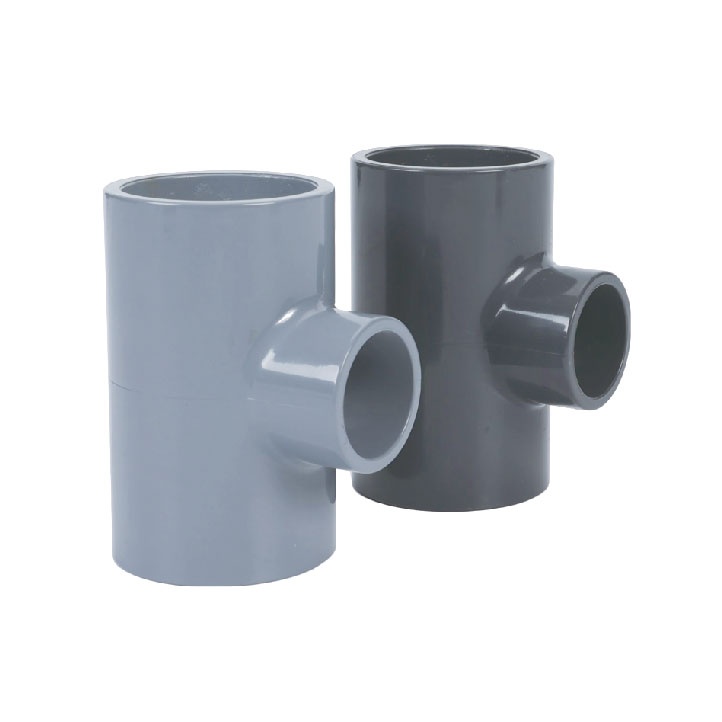

參數規格

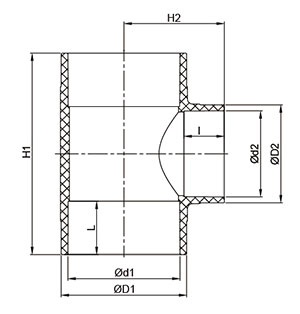

規格 | 外形尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
ΦD1 | Φd1 | ΦD2 | Φd2 | L | I | H1 | H2 | |
3／4″×1／2″ | 35.0 | 26.9 | 30.0 | 21.5 | 25.4 | 22.2 | 80.0 | 38.0 |
1″×1／2″ | 44.0 | 33.7 | 30.0 | 21.5 | 28.6 | 22.2 | 85.0 | 42.0 |
1″×3／4″ | 44.0 | 33.7 | 35.0 | 26.9 | 28.6 | 25.4 | 91.0 | 45.0 |
1—1／4″×1／2″ | 54.0 | 42.4 | 30.0 | 21.5 | 31.8 | 22.2 | 93.0 | 46.5 |
1—1／4″×1″ | 54.0 | 42.4 | 44.0 | 33.7 | 31.8 | 28.6 | 105.0 | 53.5 |
1—1／2″×3／4″ | 60.3 | 48.6 | 35.0 | 26.9 | 34.9 | 25.4 | 105.0 | 54.0 |
1—1／2″×1″ | 60.3 | 48.6 | 44.0 | 33.7 | 34.9 | 28.6 | 112.0 | 57.0 |
1—1／2″×1—1／4″ | 60.3 | 48.6 | 54.0 | 42.4 | 34.9 | 31.8 | 121.0 | 60.0 |
2″×1″ | 73.3 | 60.6 | 44.0 | 33.7 | 38.1 | 28.6 | 120.0 | 60.5 |
2″×1—1／4″ | 73.3 | 60.6 | 54.0 | 42.4 | 38.1 | 31.8 | 134.0 | 66.0 |
2″×1—1／2″ | 73.3 | 60.6 | 60.3 | 48.6 | 38.1 | 34.9 | 134.0 | 69.5 |
2—1／2″×1″ | 89.2 | 73.4 | 44.0 | 33.7 | 44.5 | 28.6 | 135.0 | 67.5 |
2—1／2″×1—1／2″ | 89.2 | 73.4 | 60.3 | 48.6 | 44.5 | 34.9 | 160.0 | 76.0 |
2—1／2″×2″ | 89.2 | 73.4 | 73.3 | 60.6 | 44.5 | 38.1 | 160.0 | 79.5 |
3″×1″ | 105.5 | 89.3 | 44.0 | 33.7 | 47.6 | 28.6 | 170.0 | 76.5 |
3″×2″ | 105.5 | 89.3 | 73.3 | 60.6 | 47.6 | 38.1 | 170.0 | 87.0 |
4″×1″ | 133.0 | 114.8 | 44.0 | 33.7 | 57.2 | 28.6 | 165.0 | 88.5 |
4″×2″ | 133.0 | 114.8 | 73.3 | 60.7 | 57.2 | 38.1 | 204.0 | 100.0 |
4″×2—1／2″ | 133.0 | 114.8 | 89.2 | 73.4 | 57.2 | 44.5 | 204.0 | 107.5 |
5″×2″ | 162.0 | 141.8 | 73.3 | 60.6 | 66.7 | 28.6 | 263.0 | 112.5 |
5″×4″ | 162.0 | 141.8 | 133 | 114.8 | 66.7 | 57.2 | 263.0 | 135.5 |
6″×2″ | 192.0 | 168.8 | 73.3 | 60.7 | 76.2 | 28.6 | 260.0 | 126.0 |
6″×3″ | 192.0 | 168.8 | 105.5 | 89.3 | 76.2 | 47.6 | 260.0 | 138.0 |
6″×4″ | 192.0 | 168.8 | 133.0 | 114.8 | 76.2 | 57.2 | 282.0 | 148.5 |
8″×4″ | 246.0 | 219.8 | 133.0 | 114.8 | 104.6 | 60.2 | 395.0 | 173.0 |
8″×6″ | 246.0 | 219.8 | 192.0 | 168.8 | 104.6 | 79.2 | 395.0 | 197.0 |
10″×6″ | 306.0 | 273.8 | 192.0 | 168.8 | 127.0 | 76.2 | 500.0 | 226.0 |
10″×8″ | 306.0 | 273.8 | 246.0 | 219.8 | 127.0 | 101.6 | 500.0 | 252.0 |
12″×6″ | 362.0 | 324.6 | 192.0 | 168.8 | 152.4 | 76.2 | 660.0 | 252.0 |
12″×8″ | 362.0 | 324.6 | 264 | 219.8 | 152.4 | 101.6 | 660.0 | 280.0 |
14″×8″ | 395.0 | 356.5 | 264 | 219.8 | 180.0 | 101.6 | 614.0 | 295.0 |
