參數規格

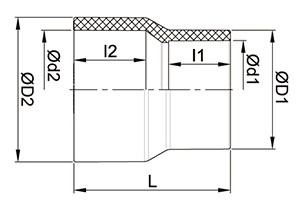

規格 | 外形尺寸 | ||||||
|---|---|---|---|---|---|---|---|
ΦD1 | Φd1 | ΦD2 | Φd2 | I1 | I2 | L | |
| 3／4″×1／2″ | 30.0 | 21.5 | 35.0 | 26.9 | 22.2 | 25.4 | 55.5 |
| 1″×3／4″ | 35.0 | 26.9 | 44.0 | 33.7 | 25.4 | 28.6 | 62.5 |
| 1—1／4″×1″ | 44.0 | 33.7 | 54.0 | 42.4 | 28.6 | 31.8 | 71.0 |
| 1—1／2″×1″ | 44.0 | 33.7 | 60.3 | 48.6 | 28.6 | 34.9 | 77.0 |
| 1—1／2″×1—1／4″ | 54.0 | 42.4 | 60.3 | 48.6 | 31.8 | 34.9 | 75.5 |
| 2″×1″ | 44.0 | 33.7 | 73.3 | 60.6 | 28.6 | 38.1 | 86.5 |
| 2″×1—1／2″ | 60.6 | 48.6 | 73.3 | 60.6 | 34.9 | 38.1 | 86.0 |
| 2—1／2″×2″ | 73.3 | 60.6 | 89.2 | 73.4 | 38.1 | 44.5 | 96.5 |
| 3″×2″ | 73.3 | 60.6 | 105.5 | 89.3 | 38.1 | 47.6 | 108.0 |
| 3″×2—1／2″ | 89.2 | 73.4 | 105.5 | 89.3 | 44.5 | 47.6 | 115.0 |
| 4″×2″ | 73.3 | 60.6 | 133.0 | 114.8 | 38.1 | 57.2 | 130.0 |
| 4″×3″ | 105.5 | 89.3 | 133.0 | 114.8 | 47.6 | 57.2 | 125.5 |
| 5″×4″ | 133.0 | 141.8 | 162.0 | 141.8 | 57.2 | 66.7 | 146.0 |
| 6″×4″ | 133.0 | 114.8 | 192.0 | 168.8 | 57.2 | 76.2 | 169.0 |
| 6″×5″ | 162.0 | 141.8 | 192.0 | 168.8 | 66.7 | 76.2 | 165.0 |
| 8″×6″ | 192.0 | 168.8 | 246.0 | 219.8 | 76.2 | 101.6 | 199.0 |
| 10″×8″ | 246.0 | 219.8 | 306.0 | 273.8 | 101.6 | 127.0 | 271.0 |
| 12″×8″ | 246.0 | 219.8 | 364.0 | 324.6 | 101.6 | 152.4 | 325.0 |
