參數規格

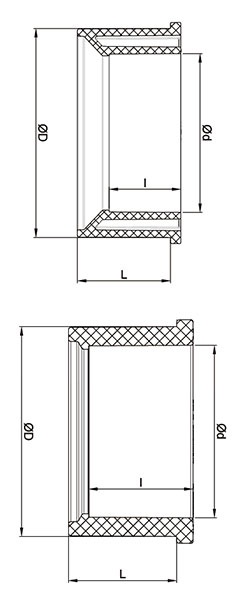

規格 | 外形尺寸 | |||
|---|---|---|---|---|
ΦD | Φd | I | L | |
| 3／4″×1／2″ | 26.9 | 21.5 | 22.2 | 25.4 |
| 1″×1／2″ | 33.7 | 21.5 | 22.2 | 28.6 |
| 1″×3／4″ | 33.7 | 26.9 | 25.4 | 28.6 |
| 1—1／4″×1″ | 42.4 | 33.7 | 28.6 | 31.8 |
| 1—1／2″×1—1／4″ | 48.6 | 42.4 | 31.8 | 34.9 |
| 2″×1″ | 60.6 | 33.7 | 28.6 | 38.1 |
| 2″×1—1／2″ | 60.6 | 48.6 | 34.9 | 38.1 |
| 2—1／2″×2″ | 73.4 | 60.6 | 38.1 | 44.5 |
| 3″×2—1／2″ | 89.3 | 73.4 | 44.5 | 47.6 |
| 4″×2″ | 114.8 | 60.6 | 38.1 | 57.2 |
| 4″×3″ | 114.8 | 89.3 | 47.6 | 57.2 |
| 5″×4″ | 141.8 | 141.8 | 57.2 | 66.7 |
| 6″×4″ | 168.8 | 114.8 | 57.2 | 76.2 |
| 6″×5″ | 168.8 | 141.8 | 66.7 | 76.2 |
| 8″×4″ | 219.8 | 114.8 | 57.2 | 101.6 |
| 8″×6″ | 219.8 | 168.8 | 76.2 | 101.6 |
| 10″×6″ | 273.8 | 168.8 | 76.2 | 127.0 |
| 10″×8″ | 273.8 | 219.8 | 101.6 | 127.0 |
| 12″×8″ | 324.6 | 219.8 | 101.6 | 152.4 |
| 12″×10″ | 324.6 | 273.8 | 127.0 | 152.4 |
| 14″×12″ | 356.5 | 324.6 | 152.4 | 180.0 |
