參數(shù)規(guī)格

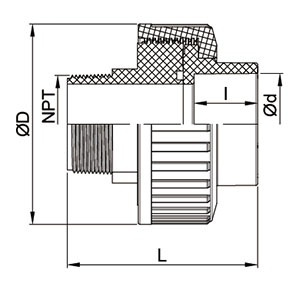

規(guī)格 | 外形尺寸 | ||||
|---|---|---|---|---|---|
ΦD | Φd | I | L | NPT | |
| 1／2″ | 47.0 | 21.5 | 22.2 | 66.0 | 1／2″ |
| 3／4″ | 56.0 | 26.9 | 25.4 | 71.5 | 3／4″ |
| 1″ | 67.0 | 33.7 | 28.6 | 82.5 | 1″ |
| 1─1／4″ | 82.0 | 42.4 | 31.8 | 91.5 | 1─1／4″ |
| 1─1／2″ | 98.0 | 48.6 | 34.9 | 97.0 | 1─1／2″ |
| 2″ | 120.0 | 60.6 | 38.1 | 114.0 | 2″ |
規(guī)格 | 外形尺寸 | ||||
|---|---|---|---|---|---|
ΦD | Φd | I | L | NPT | |
| 1／2″ | 47.0 | 21.5 | 22.2 | 66.0 | 1／2″ |
| 3／4″ | 56.0 | 26.9 | 25.4 | 71.5 | 3／4″ |
| 1″ | 67.0 | 33.7 | 28.6 | 82.5 | 1″ |
| 1─1／4″ | 82.0 | 42.4 | 31.8 | 91.5 | 1─1／4″ |
| 1─1／2″ | 98.0 | 48.6 | 34.9 | 97.0 | 1─1／2″ |
| 2″ | 120.0 | 60.6 | 38.1 | 114.0 | 2″ |
